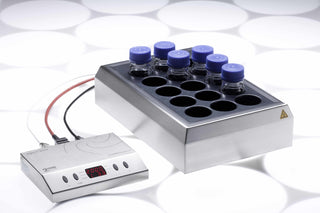

Remote controlled, multi point stirring drybath with 15 synchronized stirring positions / bore holes suitable for 100 milliliter lab flasks and 150 milliliter beaker glasses; stirring volume up to 150 milliliters; stirring speed range from 100 to 2,000 rpm; adjustable power setting with up to 40 watts of stirring power; includes external 2mag heatMIXcontrol Control Unit (115 VAC).
______
Stirring-heating block combination with 15 stirring positions, incl. control unit heatMIXcontrol, 15 bore holes 57.5 mm dia., depth 48 mm.
For viscosity measurements, R & D, combinatorial chemistry, biological applications, testing the solution behavior of synthetic materials, quality control in food, chemical and waste water technology, simple and easy system integration.
Stirring:
Maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept, extremely wide speed range of 100 to 2,000 rpm, 100% synchronized speed, jerk-free stirring even at low speeds, 10-step power settings of the stirrer, high power setting for viscous liquids and reduced power setting for long-term operation without any heating effects caused by the stirrer.
Clear digital display for settings of stirrer speed, stirrer power and temperature of the integrated heater, SoftStart procedure for reliable catching/centering and safe acceleration of the stirring bar.
Heating:
Massive heating block made of resistant aliminum alloy, PTFE-coated for increased chemical resistance and easier cleaning, lowest possible temperature gradient inside the stirring vessels, integrated electrical heater, maximum heating temperature +200℃.
PowerDetect for automatic compensation of physically determined loss in stirring power which can come up to 40% at high temperatures, specially made insulated stainless steel frame for energy- and time saving heating process, additionally for homogeneous temperature distribution and protection against accidential contact, independent over-temperature protection inside the plate.
Seperate control unit for operation of magnetic stirrer and integrated heater, for long-term protection of the electronics against aggressive liquids and gases asll as thermal influences, stainless steel housing.
3 years warranty on parts and labor.
Developed and made in Germany.
(Glassware not included)
Unless specifically included in description, accessories, glassware, or other pictured equipment are not included with this order no. and such additional items are shown for demonstrational purposes only. Many of such items can be purchased separately on this website. Dimensions and measurements are approximate. Information on this website may contain typographical errors or inaccuracies, and vendor is not liable for any such typographical errors or inaccuracies.
